Frequency Inverters for control cabinet installation

frequency-servo-inverters/lenze/frequency-cabinet/i500

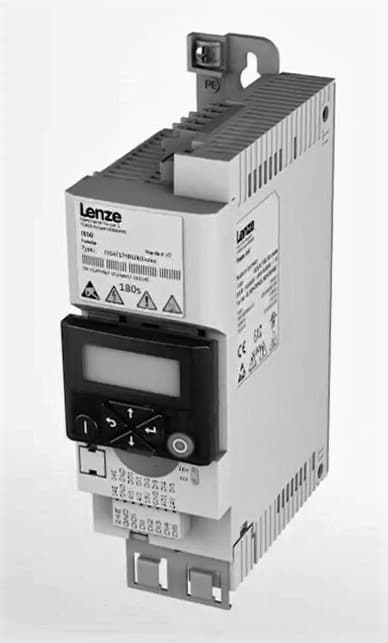

i500 series frequency inverters

i500 is the new frequency inverter series in the 0.33 to 177 Hp (0.25 to 132 kW) power range. Its distinguishing features: a streamlined design, scalable functionality and exceptional user-friendliness.i500 provides a high-quality frequency inverter that already conforms to future standards in accordance with the EN 50598-2 efficiency classes (IE). Overall, this provides a reliable and future-proof drive for a wide range of machine applications.The i500 frequency inverters are ideal for applications in the pumps and fans, conveyors, formers, winders, traveling drives, tool and hoist drives.
frequency-servo-inverters/lenze/frequency-cabinet/topline

8400 TopLine frequency inverters

8400 TopLine frequency inverters for controlled, dynamic motion.
  • Line voltage: 1 AC 230/240 V, 0.33 to 3.0 Hp (0.25 to 2.2 kW), 1.7 to 9.5 A
  • Line voltage: 3 AC 400/500 V, 0.60 to 60.0 Hp (0.37 to 45 kW), 1.0 to 89 A

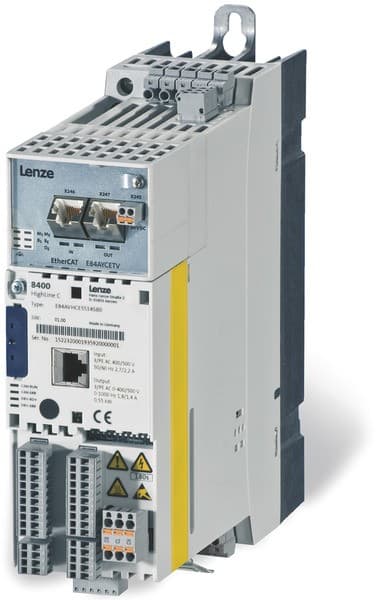

frequency-servo-inverters/lenze/frequency-cabinet/highline

8400 HighLine frequency inverters

8400 HighLine frequency inverters for easily controlled motion and positioning.
  • Line voltage: 1 AC 230/240 V, 0.33 to 3.0 Hp (0.25 to 2.2 kW), 1.7 to 9.5 A
  • Line voltage: 3 AC 400/500 V, 0.60 to 60.0 Hp (0.37 to 45 kW), 1.0 to 89 A
Particularly suitable for: rotary indexing tables or warehousing systems in the field of intralogistics, bag form fill and seal machines in the packaging industry.

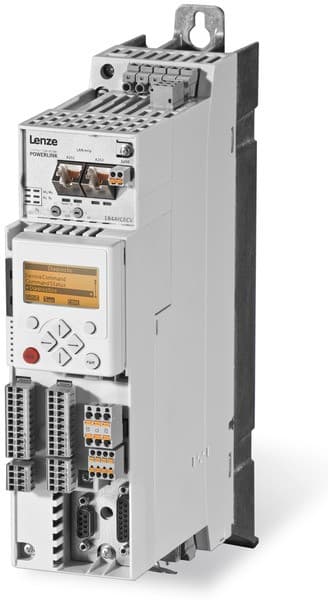

frequency-servo-inverters/lenze/frequency-cabinet/stateline

8400 StateLine frequency inverters

8400 StateLine frequency inverters for easy, controlled motion.
  • Line voltage: 1 AC 230/240 V, 0.33 to 3.0 Hp (0.25 to 2.2 kW), 1.7 to 9.5 A
  • Line voltage: 3 AC 400/500 V, 0.60 to 60.0 Hp (0.37 to 45 kW), 1.0 to 89 A
Particularly suitable for: transverse materials handling equipment, palletizers in the field of intralogistics, extruders in the plastics industry, and filling systems in the packaging industry.

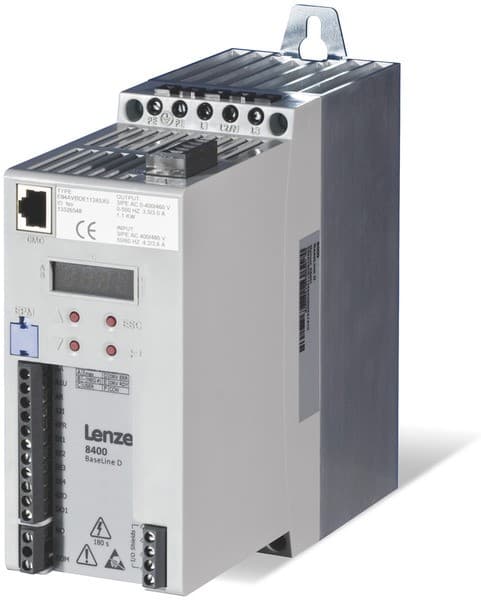

frequency-servo-inverters/lenze/frequency-cabinet/baseline

8400 BaseLine frequency inverters for controlled motion with communication

  • Line voltage: 1 AC 230/240 V, 0.33 to 3.0 Hp (0.25 to 2.2 kW), 1.7 to 9.5 A
  • Line voltage: 3 AC 400/500 V, 0.50 to 60.0 Hp (0.37 to 3.0 kW), 1.3 to 7.3 A
Particularly suitable for: conveyor drives, pumps and fans
frequency-servo-inverters/lenze/frequency-cabinet/smv

SMV NEMA 1 (IP31) frequency inverters

High-performance SMVector NEMA 1 (IP31) frequency inverters for controlled motion.
  • Line voltage: 1 AC 120/240 V, 0.33 to 1.5 Hp (0.25 to 1.1 kW), 1.7 to 6 A
  • Line voltage: 1/3 AC 200/240 V, 0.33 to 3 Hp (0.25 to 2.2 kW), 1.7 to 9.6 A
  • Line voltage: 3 AC 200/240 V, 5 to 20 Hp (4 to 15 kW), 16.5 to 54 A
  • Line voltage: 3 AC 400/480 V, 0.5 to 60 Hp (0.37 to 45 kW), 1.1 to 88 A
  • Line voltage: 3 AC 600 V, 1 to 60 Hp (0.75 to 45 kW), 1.7 to 62 A
Particularly suitable for: turntables in the field of intralogistics, production lines in the food industry and industrial manufacturing operations.
